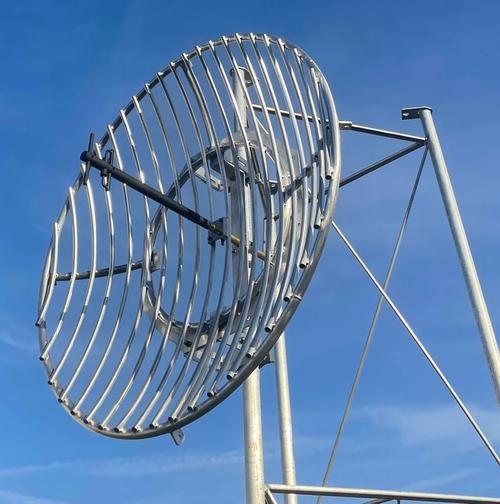

AAT STL-FP-6, 6 ft. STL 950 MHz Full Parabolic Antenna

American Amplifier Technologies STL-FP-6, 6ft. STL 950 MHz Full Parabolic Antenna

• 870-960 MHz
• Broadband Systems
• High quality aluminum, brass and copper material

• Power Rating (watts): 100
• Gain (dbi): 21.5
• Weight (lbs): 31lbs
• Frequency Range: 870 – 960 MHz
• Bandwidth: 20 – 70 MHz
• Gain: 18.5 dBi
• Front-to-Back Ratio: > 30 dB:
• Impedance: 50 ohms
• Input Power Rating: 100 W
• Beamwidth (Half-Power): 17degrees, 12 degrees, 9 degrees
• Polarization: Horizontal, Vertical
• VSWR: 1.30 : 1 (or better)
• Connections Available: Type N, 7/16 DIN, 7/8’’ EIA Flange

Notes:

1. Includes standard mounting brackets and attachment hardware.
2. Antenna weight and wind load calculations are approximate values for a typical structure. Final design loads may vary for the specific application.
