AJA HA5-Plus HDMI to 3G-SDI Mini-Converter
he AJA Hi5-Plus allows you to easily integrate HDMI and SDI! The Hi5-Plus brings HDMI and 3G-SDI devices together for a full range of monitoring and recording solutions! Perfect for the edit suite, on set or at live events.
HA5-Plus is AJA's next generation HDMI to SDI Mini-Converter. The HDMI input is converted to 3G-SDI output for driving SDI monitoring solutions. Up to eight channels of HDMI audio are passed through to the SDI output as well as the ability to embed two channels of analog audio.

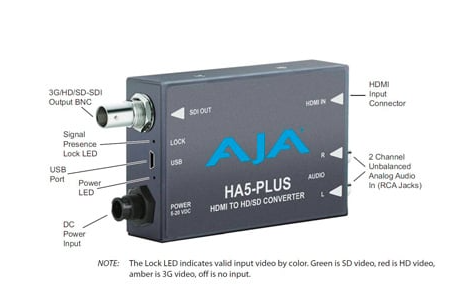

A 3G-SDI output with PLL clock filtering ensures a low jitter output for solid image stability. An LED indicator shows the input source as either SD (green) or HD (red) for fast and easy signal identification.
Features
- Industry Leading Technical Support!
- HDMI to 3G/HD/SD-SDI
- Full HDMI support including embedded audio
- Equalized HDMI input
- PLL clock filtering for low jitter SDI outputs
- Lock LED shows type of input source: SD (green), HD (red), or 3G (amber)
- HDMI v1.2 standard
- 1m HDMI cable included
- Configure via USB port and supplied Mini-Config software
Specifications / Documents
- Video Input: HDMI with embedded audio, up to 8 channels
- Input Formats
- 525i, 625i, 525p, 625p, 480p, 576p
- 720p 50, 59.94, 60
- 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- 1080i 50, 59.94, 60
- Note: HDCP content not supported
- Video Output: 3G-SDI with embedded audio
- Output Formats
- 525i 29.97
- 625i 25
- 720p 50, 59.94, 60
- 1080i 25, 29.97, 30
- 1080p 23.98, 24, 25, 29.97, 30
- 1080p 50, 59.94, 60 - SMPTE 425-1 Level A Mapping structure 1 (1920X1080 4:2:2 10-bit YCbCr)
- Audio Input: SDI embedded audio, select from 16 channels
- Audio Output: 2-channel RCA-style (-10dBV nominal)
- Power:

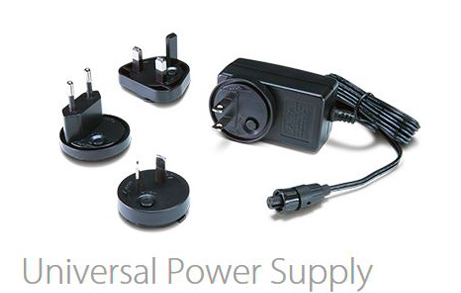

- Uses AJA Power Supply model DWP-U-R1 (included with purchase)
- 100-240V, 50/60Hz Universal Input
- +5V DC regulated, 7.5 watt capacity
- Size: 4.6" x 2.4" x 1"(117mm x 61mm x 25mm)
