AudioScience ASI5720 PCI-Express Sound Card, Analog I/O

The ASI5720 is a professional Low Profile PCI-Express sound card designed for use in the installed sound, entertainment and broadcast markets.

Providing up to 6 play streams that are mixed to 2 balanced stereo outputs and 4 record streams fed from 2 balanced stereo inputs, the ASI572x series features AudioScience's unique "anything to anywhere" mixing and routing.

Uncompressed PCM, in a choice of precision is available for both recording and playback.

For surround sound applications, SSX2 mode allows multichannel streams of up to 8 channels to be played, recorded and mixed.

Please note: Required Cable is not included, please contact BGS for cable options for your application



Features

  • 4 or 6 stereo/mono streams of playback into 2 stereo outputs
  • 2 or 4 stereo/mono streams of record from 2 stereo inputs
  • Formats include 8,16,24 and 32 bit PCM with sample rates to 96kHz
  • SSX2 mode for multichannel record, playback and mixing
  • Balanced stereo analog I/O with levels to +24dBu
  • 24bit ADC and DAC with 110dB DNR and 0.0015% THD+N
  • Low profile short length PCI(e) card format (6.6 inches/168mm)
  • Up to 8 cards in one system

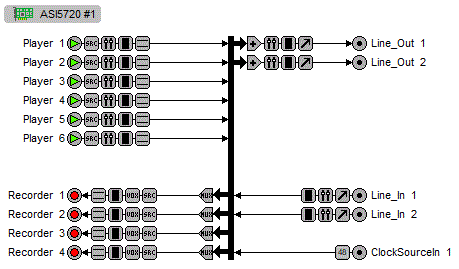

      ASI5720 6 Play mode

4-Play Mode                                                                                                                                            6-Play Mode



Specifications / Documents

ANALOG INPUT/OUTPUT

  • Type: Balanced
  • Connector: 68 pin VHDCI
  • Input Level: -10 to +24dBu in 0.5dBu steps
  • Input Impedance: 10K ohms
  • A/D converter: 24bit Over sampling
  • Output Level: -10 to +24dBu in 0.5dBu steps
  • D/A converter: 24bit Over sampling
  • Output Impedance: 50ohms
  • Load Impedance: 600ohms or greater
  • Dynamic Range: [1] >100dB (record or play)
  • THD+N [2]: <0.0015% (-96dB), record or play
  • Sample Rates: 32, 44.1, 48, 64, 88.2 and 96kHz
  • Frequency Response: 20Hz to 20kHz =/-0.2dB, 20Hz to 40kHz +0/-3dB
  • Channel Crosstalk: -120dB
  • Channel Phase Mismatch: 1.25degrees
  • Channel Level Mismatch: 0.4dB

SAMPLE RATE CLOCK

  • Internal: 32, 44.1, 48, 64, 88.2 and 96kHz. NOTE: When playing and/or recording multiple files, one sample rate must be used.
  • AES/EBU Sync In [3]: 32, 44.1 48, 88.2, 96kHz on dedicated AES/EBU input
  • Word In: [3] 32, 44.1 48, 88.2, 96kHz
  • Word Out: [3] 32, 44.1 48, 88.2, 96kHz

SIGNAL PROCESSING

  • DSP: Texas Instruments TMS320DM8147 @ 600MHz
  • Audio Formats: 8 bit unsigned PCM
    • 16bit signed PCM
    • 24bit signed PCM
    • 32bit signed PCM

GENERAL

  • Bus: X1 PCI-Express
  • Dimensions: PCI half-height form factor – 5.4" x 2.75" x 0.6" (138mm x 70mm x 15mm)
  • Weight: 8 oz (227g) max
  • Operating Temperature: 0C to 60C
  • Power Requirements: +3.3V@1.5A +12V @ 250mA
