Overview

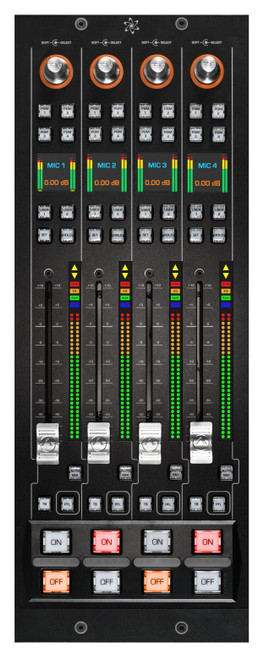

Axia Quasar XR-4FAD, 4 Channel Fader Module
The Quasar XR-4FAD module is a 4-Channel motorized fader component of a Quasar XR Console. Up to 7 XR-4FAD modules can be fitted in a single, (8.5U) frame, for a total of 28 faders. Up to 16 modules can be connected, by using multiple split-frame console configurations to constitute 64 faders. Featuring customizable avionics-grade user buttons throughout the module, four 1.44" TFT IPS Displays, 4x Touch-Sensitive high-quality encoders with detents, 4x Touch-Sensitive, high-quality motorized faders, high-resolution Bargraph Meters and RGB color coding Strips on each fader, and dual Gigabit Ethernet connections.
Quasar XR versus Quasar SR
What is Quasar XR and What is Quasar SR
The main difference between these two consoles is in the different fader Modules they use. Quasar XR uses the so-called XR-4FAD Modules, while the Quasar SR uses the SR-4FAD Modules. The frame chassis and the Master Module (MTS-MON) remain the same. Quasar XR can address more complex on-air workflows and is intended for more experienced operators that make extensive use of Layers and Remote controls. For this they require Motorized faders. Quasar SR addresses more modern and streamlined radio workflows and is intended for self-operated on-air shows.
Axia Quasar SR radio console is the direct replacement for Axia’s best-selling Fusion console. If you like Fusion, you’ll love Quasar SR—which is comparable to the Fusion console in both price and feature set but also delivers all the power, ergonomics, industrial design, and star appeal of our flagship Quasar XR console.
Axia Quasar SR radio console is not reserved for the most knowledgeable broadcaster but is approachable to any board operator thanks to its streamlined surface design. Quasar SR uses the same frame, power supply, and master module as Quasar XR, but the fader modules are non-motorized, and there are fewer, larger, and easier-to-reach buttons on each channel strip. If the LED meters next to each fader on the Quasar XR console are a bit too much functionality for your surface, then Quasar SR might be the solution for you, featuring Confidence Class Metering only.
For Complete information, please watch the short video below
