Bext FFC01 Dual Cavity FM Band Pass Filter

Bext FFC01 Dual Cavity FM Band Pass filter

•  Up to 150W, dual cavity RF Filter for FM Radio Stations, 87.5 -108MHz
•  Can also be used to improve FM reception in high RF environements
•  Optional 4RU rack mounting kit available
•  Low loss, very rugged, stable tuning over time, compact design
•  Conservatively rated, high quality materials & precision crafted parts
•  Designed to minimize inter-mods, harmonics or spurious emissions

• Model: FFC01
• Max Power: 150W
• Impedance: 50 Ohm
• Frequency Range: 87.5-108MHz

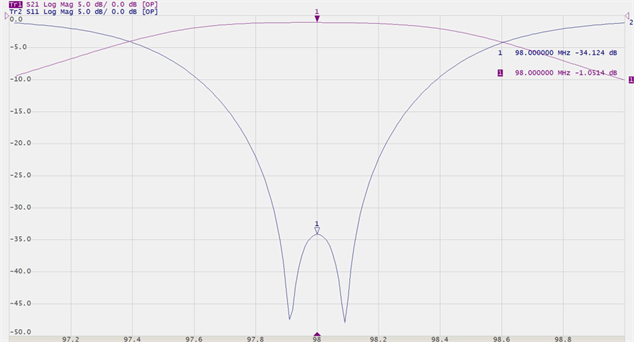

• Insertion Loss: -0.60dB to -1.25dBMax
• Return Loss: +/- 150kHz ≤-26dB
• Rejection: +/- 3.5MHz Typical ≤-30dB
• Connectors: N-Type Female Input/Output</br>
• Working Temperature: -4°F to 122°F
• Weight: 6kg/14lbs
• Dimensions: 400 mm / 16” inches (H) – 190 mm / 7 1/2” inches (L) – 90 mm / 3 1/2” inches (W)
