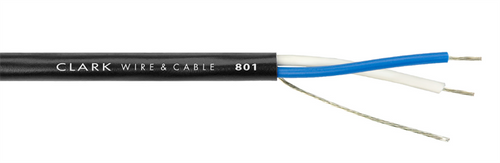

Clark Wire & Cable 24AWG AES/EBU Single-Pair Audio Cable, Violet Jacket
Clark’s 801 is a low-loss 110Ω data cable for AES/EBU digital audio applications. Easy to terminate, the 801 features a bonded easy-strip shield and tinned copper conductors that streamline cable termination. Excellent common-mode and RF/EMI noise rejection are achieved by a precision twisted pair and 100% foil shield. For impedance matching in data transmission applications, the 801 has a precision 110Ω characteristic impedance. UL rated CM, the 801 can be installed in a variety of permanent installation environments.
Features
- Easy-to-Strip and Terminate - jacket and bonded foil shield strip in one operation
- 100% Foil Shield - fully shielded with drain wire for easy termination
- 24 AWG Low-Loss Conductors - low loss, corrosion resistant and easy to solder
- 110Ω Characteristic Impedance - precision impedance for 192kHz/24bit data transmission
- UL Rated CM - suitable for permanent installation tin applications that require CM listed cables
Specifications / Documents
Materials & Dimensions
- Conductors: (2) 24AWG (7x32) Stranded TC, .024" O.D.
- Insulation: Foam Polypropylene .023" wall, (one white, one blue)
- Shield: 100% Foil (Easy-Strip Bonded) with 24AWG (7x32) Stranded TC Drain Wire
- Jacket: PVC, .191" O.D.
- Available Colors: Black or Violet
Performance Characteristics
- Capacitance
- 12.5 pF/ft between cond.
- 21.6 pF/ft between conductor and shield
- DC Resistance: Conductor: 24.5 Ω/Mft Shield w/ Drain: 22 Ω/Mft
- Temperature Range: -20°C to +75°C
- Impedance: 110Ω
- UL Listing: CM
