Comrex FieldLink PressBox IP Codec

Comrex FieldLink PressBox IP Codec

MSRP: $1,700.00
$1,615.00
Write a Review
SKU:
COM-FIELDLINK
Availability:
Ships from Manufacturer, Contact us for Pricing and Availability
Adding to cart… The item has been added

Overview

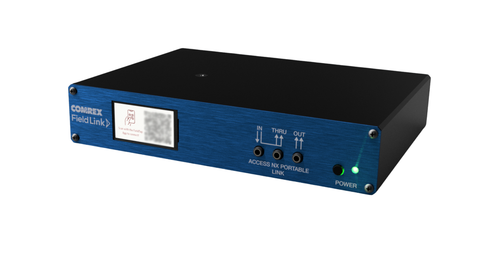

Comrex FieldLink PressBox IP Codec (Coming Soon)

Whether you’re calling the big game or broadcasting live from the State Fair, you want your listeners to be right in the middle of the action. FieldLink can connect your audiences with sideline reporters, on-air talent at a street fair or any event where you want to capture the excitement live-to-air.

Instead of using expensive wireless radios for mic and IFB, sideline reporters and talent can use an Android or iOS mobile device with a USB-C audio interface to send and receive audio to and from FieldLink.

Using a directional WiFi Access Point (WAP), contributors can use their smartphones to send and receive high quality, low delay audio using the free Comrex FieldTap app available for iOS and Android. FieldLink has pro-grade audio I/O to deliver sideline audio and allow IFB back to reporters.

  • Replaces expensive wireless mic/IFB solutions
  • Talent uses their smartphone with a USB-C Mic (no need for extra gear)
  • Works with the free Comrex FieldTap app
  • Allows for two sideline reporters simultaneously with return audio
  • Works with approved Wireless Access Points (WAPs)
  • Scannable QR code on the FieldLink front panel LED screen for automatic association with WAP
  • Built-in Power-over-Ethernet port (PoE) for WAP
  • Comrex CrossLock-capable in Studio Codec mode (using a single WAN port)
  • Front panel connectors to/from Comrex ACCESS NX Portable using mix-minus mode
  • Studio Codec/SwitchBoard Upgrade (optional) – applied as license to FieldLink hardware
  • Four end-to-end contact closures when connecting back to a Comrex hardware IP audio codec in the studio

Comrex FieldTap IP Audio Codec Free Smartphone App Link

Specifications / Documents



Audio Specifications

  • 2x balanced mono XLR line-level audio in/out (0dBu)
  • Balanced audio I/O level: 0 dBu
  • Full scale is 20 dB above nominal
  • 3x front panel 3.5 mm jack input/output for use with ACCESS NX Portable (in/out/thru)
  • Sideline encode/decode: Opus Mono 64 or 128 kb/s
  • Studio encode/decode: Opus Mono 64 or 128 kb/s

Other Connections

  • 2 Gigabit Ethernet ports: PoE port for connection to Access point, second port for WAN connection
  • Contact closures (9-pin mini DIN)

Power and Physical

  • USB-C power using provided external desktop 45W power supply
  • Size (8.5” W x 6” D x 1.5” H; 21.59 cm x 15.24 cm x 3.81 cm)
  • Weight (4 lbs; 1.8 kg)
