Digigram LX-IP RAVENNA AoIP and AES67 Sound Card

Digigram LX-IP RAVENNA AoIP and AES67 Sound Card

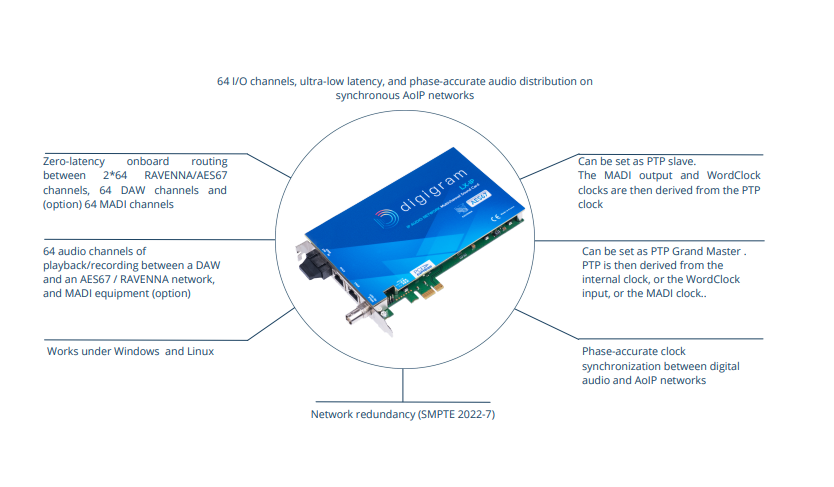

LX-IP provides the perfect gateway from mission critical applications to RAVENNA and AES67 AoIP networks. Its 64 I/O channels, 0.5ms latency and phase accuracy match all the requirements of demanding applications for multiple channels playout, recording, and processing. Its hardware-based architecture maintains performance regardless of the computational load of other applications running on the host
system. LX-IP with MADI optional interface provides a seamless migration path from legacy digital audio to AoIP and provides all MADI features described below.

• High channel count: 64×64 I/O
• PTP grand master or slave
• Phase-accurate audio distribution on synchronous AoIP networks
• Interoperability with traditional digital audio
• Ensure interoperability: LX-IP is fully compliant with triple standards AES67, RAVENNA and MADI (AES10)
• Seamless migration to IP: High density, ultra-low latency : nd phase accurate AoIP / PC / MADI bridge

IP AUDIO

• RAVENNA I/O channels: 2 banks of 64/64 I/O (Mono) channels at 44.1 kHz or 48 kHz (64/64 I/O on each Gigabit Ethernet interface)
• RAVENNA packet size: From 128 down to 1 (ultra-low latency profile) audio samples per RAVENNA packet
• AES67 compliance: Full compliance in all respects with AES 67
• Supported audio payload formats: PCM16 / PCM24 / PCM32 / AM824 (PCM24+AES3 channel status)
• PC Record/Play channels: 64/64 simultaneous Record/Play (Mono) channels to/from PC

CONNECTORS

• 2 Gigabit Ethernet RJ45 ports for RAVENNA I/O (dual port or Primary / Back up mode)
• 1 optical connector for MADI I/O (Factory option) (multimode, 1300nm)
• 1 BNC for Word Clock In / Out
