Overview
LUMANTEK ez-MD+ HDMI/SDI Cross Converter with Audio Mux/Demux
LUMANTEK’s ez-MD+ is a compact cross-converter for HDMI to SDI or SDI to HDMI. The genlock system allows synchronizing of signals to combine unpaired output signals. It supports XLR balanced audio support with audio delay controller.
Features

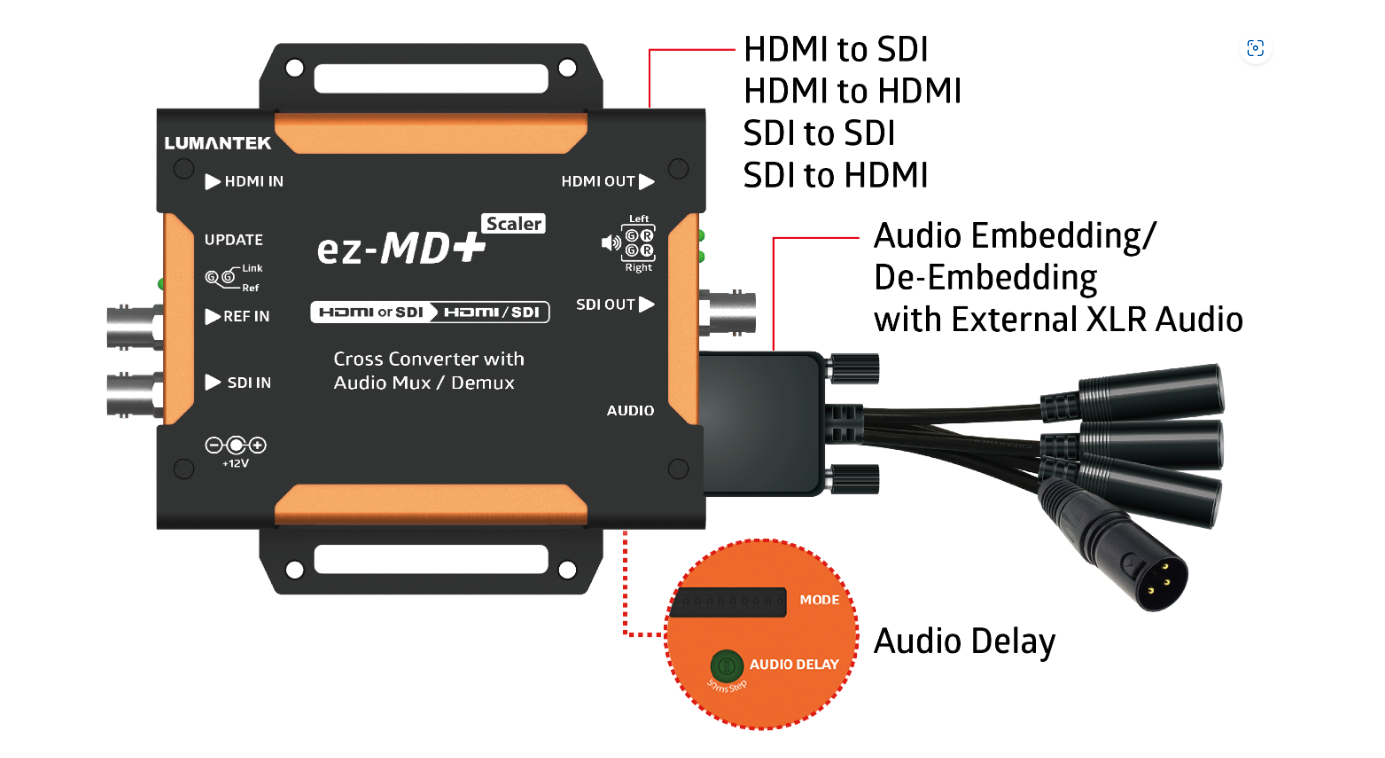

- HDMI and SDI Cross-Converting: LUMANTEK’s ez-MD+ is a compact Cross-Converter for HDMI to SDI or SDI to HDMI.
- Up / Down Scaling and Screen Ratio Control: ez-MD+ can change the resolution of the incoming video to any resolution ranging from 480i to 1080p60. You can also change the video displaying ratio. You can choose from either 16:9 (Full) or 4:3 (Pillar Box) screen ratio to fit your requirement. All these functions are controlled by 'dip switch'
- Audio embedding/De-embedding with external XLR Audio: 9 pin serial port to XLR * 4 is included
- Audio Delay control: Use the rotary switch to control the audio delay of the video source (50ms Step).
- Frame Synchronization: There is a “Free Running”, “Input Lock”, and “Genlock” mode to synchronize your video signal. Genlock system ensures proper synchronizing of the signals when aligning the source with external signal.
Specifications / Documents
| Data Input | |
|
SDI Video Input |
SD/HD/3G-SDI (BNC 75Ω) x1 |
| HDMI Video Input | SD/HD/3G (HDMI Type A) x1 |
| Reference Input |
B.B , TRI (BNC 75Ω) x1 |
|
Audio Input |
D-SUB 9PIN (Female) x1 |
| Video Formats | 720x480i@59.94/60 720x576i@50 1280x720p@50/59.94/60 1920x1080i@50/59.94/60 1920x1080p@23.98/24/25/29.97/30 1920x1080p@50/59.94/60 |
| Data Output | |
| SDI VIdeo Output | SD/HD/3G-SDI (BNC 75Ω) x1 |
| HDMI Video Output | SD/HD/3G (HDMI Type A) x1 |
| Audio Output | D-SUB 9PIN (Female) x1 |
| 720x480i@59.94 (DIP SW : 1111) 720x576i@50 (DIP SW : 0111) 1280x720p@50 (DIP SW : 1011) 1280x720p@59.94 (DIP SW : 0011) 1280x720p@60 (DIP SW : 1101) 1920x1080i@50 (DIP SW : 0101) 1920x1080i@59.94 (DIP SW : 1001) 1920x1080i@60 (DIP SW : 0001) 1920x1080p@23.98 (DIP SW : 1110) 1920x1080p@24 (DIP SW : 0110) 1920x1080p@25 (DIP SW : 1010) 1920x1080p@29.97 (DIP SW : 0010) 1920x1080p@30 (DIP SW : 1100) 1920x1080p@50 (DIP SW : 0100) 1920x1080p@59.94 (DIP SW : 1000) 1920x1080p@60 (DIP SW : 0000) |
|
| Connections | |
| Power |
DC Power Input (DC Jack) x1 |
| Update | Debus (Micro-USB) x 1 |
| DIP Switch | (10 Pole) x 1 Video Output Resolution, Video Output Ratio, Video Input (SDI or HDMI), Audio (INT or EXT), Sync Mode : Free Running, Input lock, Genlock (B.B or TRI-Level), Audio Gain (0 or -10dB) |
| Rotary Switch | (10 step) x 1 |
| Audio Delay Control | (50ms Step) |
| Display | |
| Link (Green x 1) | HDMI or SDI Input video Detect |
| Ref (Green x 1) | REF Input Signal Detect |
| Left (Green x 1, Red x 1) | Input Audio Level Meter (Left) |
| Right (Green x 1, RED x 1) | Input Audio Level Meter (Right) |
| Electrical | |
| Power Input |
DC +11V to +13V |
| Power consumption |
8W (max.) |
| Operation Temperature |
0~45℃ |
| Physical | |
|
Dimension |
130x100.4x26.9 mm (include connector) |
| Weight | 0.4kg (0.88 lbs) |
