Overview
Moseley SL9003QHP-2SLAN, Starlink Two Channel Digital STL System, provides one 44.1 kHz stereo pair with RS-232 channels, plus 544 kbps simplex Ethernet data.
The SL9003Q is a fully transparent link in your all-digital air chain, allowing the clarity of your audio to shine through. AES/EBU inputs and outputs combine with a built-in variable rate converter to offer seamless, compression-free connectivity. Front panel audio metering with RF and Modem diagnostics continually monitor the quality of your signal, assuring easy initial installation and maintenance.
Utilizing spectrally efficient Quadrature Amplitude Modulation technology, the SL9003Q can be configured to deliver linear audio channels, UDP for HD Radio™, plus RS-232 for remote control and RBDS over narrow-bandwidth RF STL channels. User-selectable modulation rates of 16, 32, 64, and 128 QAM allow the end-user to maximize payload for RF channel allocations.
Features
- Linear uncompressed audio
- HD Radio™ Data Streams
- 32, 44.1, or 48 kHz sample rates
- Input AES/EBU Digital or Analog (L+R)
- Output AES/EBU Digital and Analog (L+R)
- Built in RS-232 data channels
- User-Selectable 16, 32, 64, 128 QAM modulation
- User-selectable 200-500 kHz channel bandwidth
- Adaptive Equalizer
- Powerful Reed-Solomon
- Error Correction
- Low processing delay
Starlink SL9003Q meets all the requirements for IBOC digital radio. Starlink transports AES/EBU digital audio at all the approved sample rates along with simplex Ethernet data to provide all the signals necessary for the audio, multicasting, and data-casting services. With Starlink, stations can get the most out of HD Radio™ conversion now and in the future.
Common Configurations
- SL9003Q-2S provides one stereo pair with 44.1 kHz audio sampling at 16 QAM.
- SL9003Q-4S provides two stereo pairs with 32 kHz audio sampling at 32 QAM or 44.1 kHz sampling at 128 QAM.

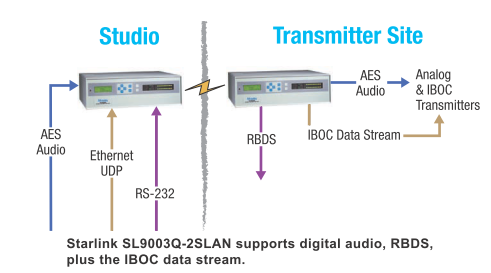

- SL9003Q-2SLAN provides one 44.1 kHz stereo pair with RS-232 channels, plus 544 kbps simplex Ethernet data.
- SL9003-4SLAN provides two 32 kHz stereo pairs with RS-232 channels, plus 384 kbps of simplex Ethernet data.
Specifications / Documents
| System |
| AUDIO CAPACITY | 4 linear (32 kHz sample rate) + 2 data channels; or 4 linear (44.1 kHz sample rate) (Configuration Dependant) |
| DISTORTION | <0.01% |
| FREQUENCY RESPONSE | 0.5 Hz to 22.5 kHz (48 kHz sample rate), >0.5 Hz to 15 kHz (32 kHz sample rate) |
| DATA CODING METHOD | Selectable 32, 44.1, 48 kHz built-in rate converter |
| DYNAMIC RANGE | 90 dB static encoder/decoder |
| TIME DELAY | Linear 0 ms, ISO/MPEG 160-200ms |
| CROSS TALK | -80 dB |
| BIT ERROR IMMUNITY | >10E-04 with no subjective loss in audio quality |
| Source Encoder | Source Decoder | |
| AUDIO INPUT CONVERSION | XLR Female | XLR Male |
| ANALOG AUDIO INPUTS | Electronically balanced, 600/10k Ohm selectable | Electronically balanced, 600/10k Ohm selectable |
| ANALOG AUDIO LEVELS | -10 dBu to +18 dBu, rear panel accessible | -10 dBu to +18 dBu, rear panel accessible |
| DIGITAL AUDIO INPUTS | AES/EBU or SPDIF selectable | AES/EBU or SPDIF selectable |
| AES/EBU INPUTS | Transformer balanced, 110 Ohm input impedance | Transformer balanced, 110 Ohm input impedance |
| SPDIF INPUTS | Unbalanced, 75 Ohm input impedance | Unbalanced, 75 Ohm input impedance |
| DATA INPUT CONNECTORS | 9-pin D Male RS-232 levels | 9-pin D Male RS-232 levels |
| DATA INPUT RATES | Async, 300-4800 bps selectable | Async, 300-4800 bps selectable |
| TRUNK OUTPUT RATES | Uncompressed Linear (1.024, 1.4112 or 1.536 Mbps) | Uncompressed Linear (1.024, 1.4112 or 1.536 Mbps) |
| TRUNK OUTPUT CONNECTOR | 15-pin D Female | 15-pin D Female |
| TRUNK OUTPUT TYPES | Synchronous V.35 or RS-449 | Synchronous V.35 or RS-449 |
| Intelligent Multiplexer | ||||||||||||||||
|
| Transmitter | Receiver | |
| FREQUENCY | 215-235, 335-512, 800-960, 1350-1525 MHz, 1.7-2.2 GHz synthesized | 215-235, 335-512, 800-960, 1350-1525 MHz, 1.7-2.2 GHz synthesized |
| POWER OUT/THRESHOLD | +30 dBm standard, +27 dBm (1.5 GHz) 1.7GHz TPO 27-37 dBM TPO | -93 dBm/16 QAM; BER 10-6, -90 dBm/64 QAM (10-6) 2 Channels |
| STEP SIZE | 25 kHz | 25 kHz |
| OCCUPIED BANDWITH | 200/300/500 kHz. Rate/QAM mode dependent | 200/300/500 kHz. Rate/QAM mode dependent |
| MONITORING | 200/300/500 kHz. Rate/QAM mode dependent, Fwd, Rev Power, Tx Lock, Radiate | 200/300/500 kHz. Rate/QAM mode dependent, RSL, BER, Rx Lock |
