Pixel Technologies AFHD-4, Omnidirectional-Long Range AM/FM/ HD Antenna

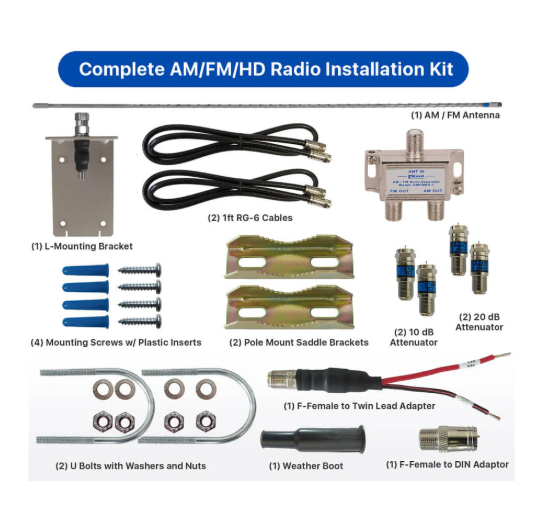

The Pixel AFHD-4 antenna delivers best in class AM/FM & HD Radio reception over a single RG-6 cable. Designed for easy outdoor or attic installation with rugged pro-quality construction, this low profile Omni-directional antenna will bring out the best performance from any receiver.
Specifications / Documents
- Frequency of Operation: AM Band 500 KHz to 1750 KHz, FM Band 88MHz -108 MHz
- Ground plane required: None
- AM/FM dB Gain: 4.5 dB Gain
- AM capture length: 300 inches
- FM rejection in AM band: > 50 dB
- AM rejection in FM band: > 60 dB
- AM/FM Pass-band loss: < 1dB
- AM load impedance: 300 ohms
- FM load impedance: 75 ohms
- Antenna Beam Width: Omni-directional
- Daytime Reception: FM Stereo 80 Miles, FM HD 50 Miles, AM (Mono) 90 Miles, AM HD 50 Miles
- U Bolts Inside Dimensions: 2 inches
- Dimensions: 48 inches tall
- Weight: 3 lbs
