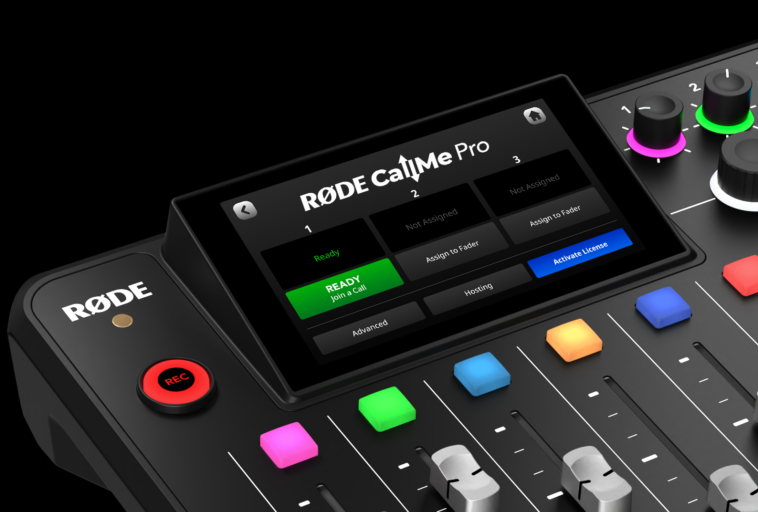

VORTEX RØDE CallMe Pro Codec Perpetual License , For RØDECaster Pro II and RØDECaster Duo
The updated CallMe-RC (RØDE CallMe Pro) provides fully integrated IP audio connectivity for RØDECaster Pro II and RØDECaster Duo. Unlike other codec solutions, there is no need for any modification or external interface or codec. The enhancement provides a cost-effective one-box solution for Outside Broadcast, Podcasting and Web Streaming with Cabled, Wi-Fi and Mobile internet connectivity.
Upgraded units have the same straightforward operation as CallMe-T hardware codecs, providing up to 22kHz low-delay Opus Audio, compatible with most manufacturers’ codecs that support the same standards.
As with all hardware CallMe products, RØDE CallMe Pro supports RFC7198 fully-compliant SIP Dual Streaming to provide reliable resilient connectivity. RØDE CallMe Pro (CallMe-RC) provides three separate stereo CallMe Codec channels that can connect to three different destinations. For example one CallMe Channel can be used for 2-way Stereo Program Audio, another for 2-way Talkback whilst the third could be connected to a Guest Contributor or indeed to another studio.
Specifications / Documents
- SUPPORTED CODECS:
- Opus Stereo
- Opus Mono & Dual Mono 8–510kbps
- G.722 and G.711 μ-law and A-law
- ANALOGUE BANDWIDTH: 20Hz–20kHz
- NETWORK: 100BASE-TX Ethernet on RJ45, Internal WiFi and External 4G (USB)
- IP PROTOCOLS AND PORTS
- SIP: UDP 5060, TCP 5060
- RT(C)P: UDP 15004–15515
- MDNS: UDP 5353
- LLMNR: UDP 5355, TCP 5355
- DHCP: UDP 68
- HCPV6: UDP 546
- DNS: UDP any (53 remote)
- STUN: UDP any (3478 remote)
- HTTP: TCP 80
- HTTPS: TCP 443
- SSH: TCP 22
