Overview

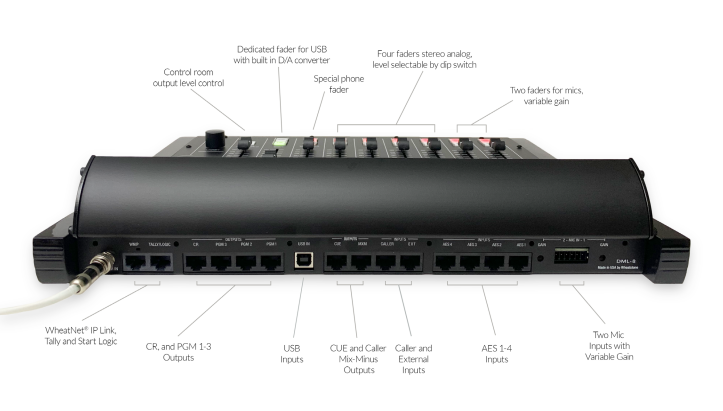

Audioarts DM-8 Verse, 8 Channel Digital Console
The Audioarts Verse 8-channel digital console is plug-in ready and quality-built for broadcast with separate power supply, pro faders with separate on/off buttons for each channel, at-a-glance bridge metering, and a USB direct-to-fader input for PCs, phones, players and other external devices.
- Sleek one-inch profile
- 8 faders
- One USB input/output
- AES3 channel inputs via RJ45, for connecting a digital source to any fader
- Three stereo program busses
- Super Quiet mic preamps
- Electronic switching
- LED illumination
- Built-in cue speaker
- Headphone jack with built-in amplifier
- Two external inputs feed the monitor section (for live or pre-delay air monitoring)
- Balanced or unbalanced inputs/outputs for consumer or professional grade
Specifications / Documents
- 2 Microphone Level Input Faders
- 5 AES Digital Stereo Input Faders
- 1 Caller Fader with Mix Minus
- 1 USB Input Fader
- 3 Stereo Program Busses
- 1/8" Headphone Jack
- Cue Speaker
- Split Cue
- External Monitor Input
- 3 VU Meter Bridge
- On-Air Tally
- RJ-45 Wiring
- HPS-516 External Power Supply & Cable
