Eupen Cable EC5-50-A, 7/8" Low Loss Foam Coax Cable

Eupen Cable EC5-50-A, 7/8" Low Loss Foam Coax Cable

Coaxial cable, "A" series 7/8" 50 ohm corrugated copper with black PE jacket

Available Connectors

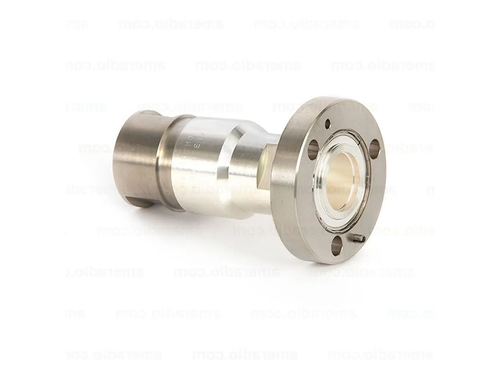

EIA78V78N - 7/8" EIA Flange

7/16F50V78N1 - 7/16 DIN Female

7/16M50V78N1 - 7/16 DIN Male

NF50V78N1 - N Female

NM50V78N1 - N Male

• Construction:
  • Inner conductor: Smooth copper tube, ⌀ 0.36 in (9.2 mm)
  • Dielectric: Gas-injected cellular polyethylene, ⌀ 0.93 in (23.5 mm)
  • Outer conductor: Corrugated copper tube, ⌀ 0.98 in (25 mm)
  • Outer sheath: Black polyethylene, ⌀ 1.09 in (27.8 mm)
• Characteristics:
  • Impedance (Ohm): 50 ± 1
  • Temperature range: -40°F to +140°F
  • Water immersion testing: IP67 & IP68
  • RF peak voltage (kV): 2.9
  • RF peak power (kW): 86
  • Cut-off-frequency (GHz): 5.1
  • Insulation resistance (MΩ/km): >> 5000
