Eupen Cable EC6-50-A, 1 1/4" Low Loss Foam Coax Cable

Eupen Cable EC6-50-A, 1 1/4" Low Loss Foam Coax Cable

Coaxial cable, "A" series 1-1/4" 50 ohm corrugated copper with black PE jacket

Available Connectors

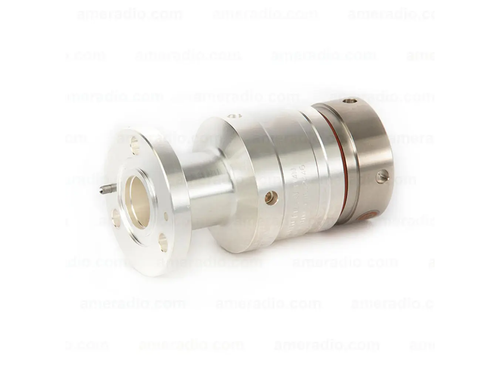

EIA78V114N - 7/8" EIA Flange

7/16F50V114N1 - 7/16 DIN Female

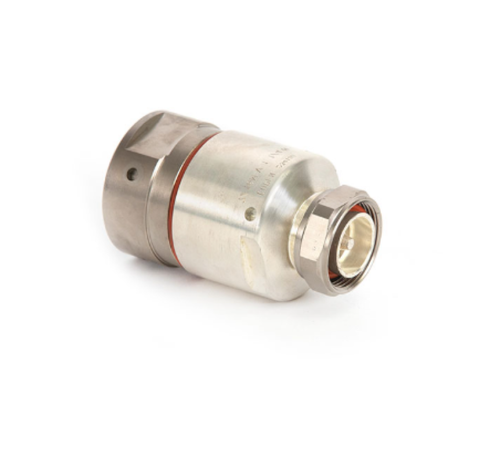

7/16M50V114N1 - 7/16 DIN Male

NF50V114N1 - N Female

NM50V114N1 - N Male

• Construction:
  • Inner conductor: Smooth copper tube, ⌀ 0.51 in (13 mm)
  • Dielectric: Gas-injected cellular polyethylene, ⌀ 1.32 in (33.5 mm)
  • Outer conductor: Corrugated copper tube, ⌀ 1.42 in (36 mm)
  • Outer sheath: Black polyethylene, ⌀ 1.54 in (39.0 mm)
• Characteristics:
  • Impedance (Ohm): 50 ± 1
  • Temperature range: -40°F to +140°F
  • Water immersion testing: IP67 & IP68
  • RF peak voltage (kV): 4.3
  • RF peak power (kW): 184
  • Cut-off-frequency (GHz): 3.7
  • Insulation resistance (MΩ/km): >> 5000
