Overview

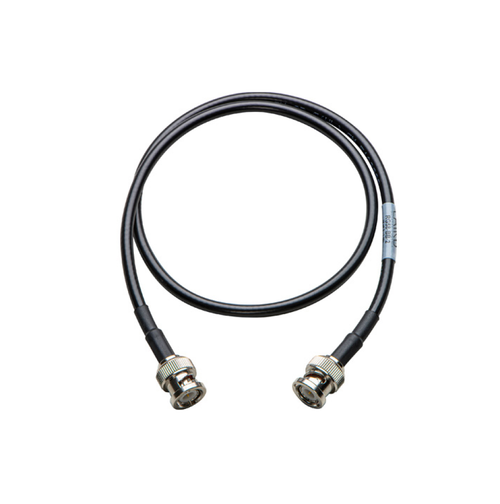

Laird RG58 50 Ohm BNC Male to Male Antenna Cable - 25 Foot
The Laird RG58-BB are pre-terminated 50 Ohm BNC coax assemblies featuring RG58 cable. Use 50 Ohm coaxial cables for RF applications that demand a compromise between minimum signal attenuation and maximum power handling over shorter runs. Typical RG58 coax uses are thin Ethernet, mobile and base antenna installations, amateur radio, and communications patch bays.
Features
- Pre-terminated 50 Ohm BNC coax assemblies
- Utilizes RG58 cable
- Designed for RF applications
- Balances signal attenuation and power handling
- Suitable for shorter runs
- Commonly used in communications patch bays
- Ideal for mobile and base antenna installations
- RoHS Compliant
Specifications
- NEC UL Rating: CM
- Applications: 50 Ohm Systems
- Bend Radius: 1.95"
- Conductors: 1
- AWG Size: 20
- Stranding: Solid
- Conductor Type: Tinned Copper
- Insulation: Foam Polyethylene
- Insulation Nom. O.D.: 0.116"
- Shield Type: 100% Aluminum Foil + 95% Tinned Copper Braid
- Vel. of Prop.: 80% Nom. D.C.R. (Resistance) 10.1 Ohm/1000ft
- Jacket Type: PVC
- Nom. Impedance: 52 Ohm
