Lilliput BM150-12G-ABBP, 15.6 Inch, 12G-SDI & 4K HDMI Broadcast Monitor w/ Gold Mount Plate
The BM150-12G features 12G-SDI Dual/Quad-Link Square Division in 4K mode, where each link displays a square of the original image. It also offers 2 Sample Interleave in 4K mode, with each link showing a full image at 1/4 resolution. These features ensure precise image reproduction and high-resolution monitoring. With HDMI and SDI connectivity at 12G connectivity speeds. Designed for the professional video and film industry and is ideally suited for directors and camera operators operating 4K capable equipment.
The monitor also offers a multiple views display, supporting quad views split from different input signals simultaneously, such as 12G-SDI, 3G-SDI, and HDMI. It also features a Picture-in-Picture function, allowing you to monitor different scenes at the same time.
Features
- 4K (3840*2160) Ultra-HD native resolution
- 15.6" perfect size for both suitcase & rackmount
- High contrast: 1000:1
- 330cd/m² brightness
- 176° Ultra high viewing angle

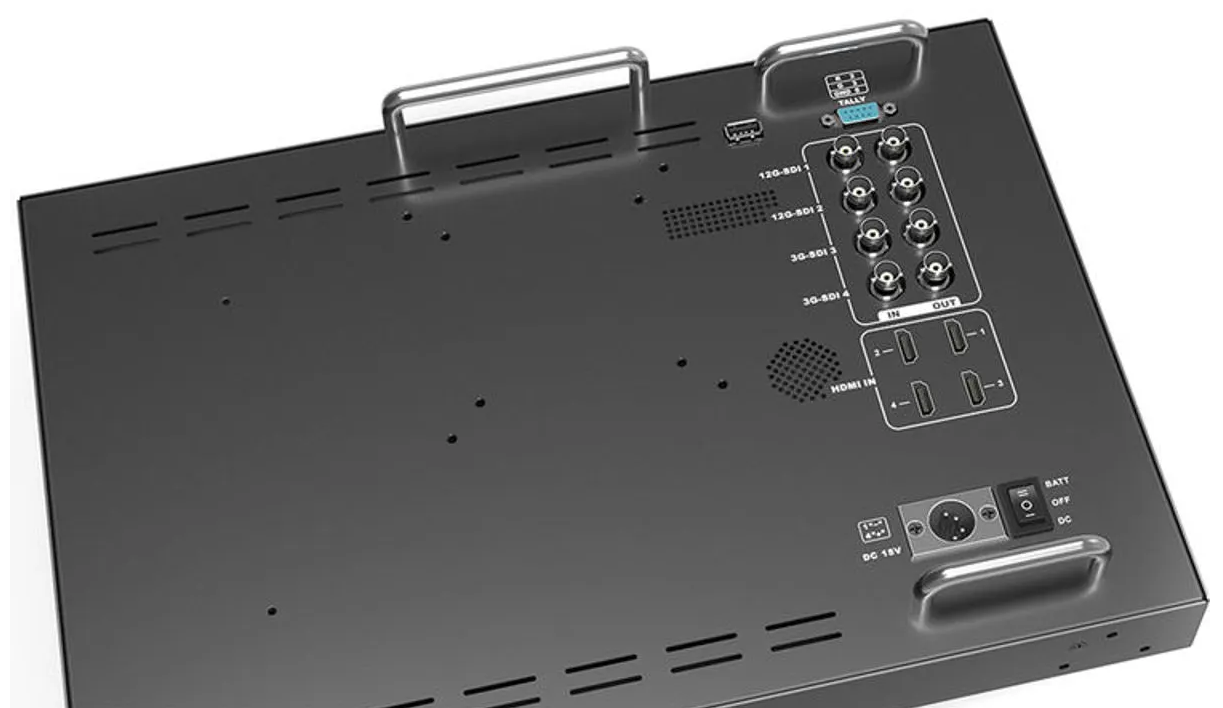

- Abundant interfaces: 12G-SDIx2, 3G-SDIx2, HDMI 2.0x1 HDMI1.4x3, Tally input
- 12G-SDI single link, dual link and 3G-SDI quad link
- Metal housing
- Wide voltage: DC12-24V
Specifications / Documents
Display
- Display Screen: 15.6" IPS
- Physical Resolution: 3840 x 2160
- Aspect Ratio: 16:9
- Brightness: 330cd/m²
- Contrast: 1000:1
- Viewing Angle: 176°/176° (H/V)
Inputs
- 12G-SDI: 2
- 3G-SDI: 2
- HDMI: 2.0x1 (Support 4K 60Hz); 1.4x3 (Support 4K 30Hz)
- Tally: 1
Outputs
- 12G-SDI: 2
- 3G-SDI: 2
Audio
- Speaker: 1
- Headphone: 1
Power
- Current: 2.8A(15V)
- Input Voltage: DC 12-24V (XLR)
- Battery Plate: Anton Bauer mount
- Power Consumption: <34W
Dimension
- Dimension (LxWxD): 15.32 x 10.51 x 1.50" / 20.63 x 12.01 x 6.69" (with case)
- Weight: 7.50 lbs. / 26.46 lbs. (with case)
