Overview
ShieldRock 8K-TXRX, Bidirectional QUAD 12G-SDI Optical Fiber Converter

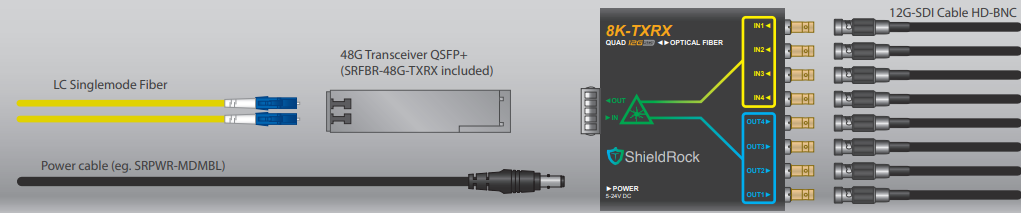

Transmit and receive 8K/UHD2 formats up to 4320p60 over ber optic cable. The converter includes both equalizing and reclocking functions. Power by USB-C, or make use of the locking barrel connector with the included power supply. This small and lightweight module features rugged powder coated aluminum construction.
Video Interface
• 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, SD-SDI (auto switching)
• SMPTE 292M, 259M, 296M, 297M, 372M, 424M, 425M, 2081, 2082
• 8K/UHD2 4320p 23.98/24/25/29.97/30/48/50/59.94/60
• 4K/UHD 2160p 23.98/24/25/29.97/30/48/50/59.94/60
• 2K/HD 1080p 23.98/24/25/29.97/30/48/50/59.94/60 1080i 50/59.94/60 1080PsF 23.98/24/25/29.97/30 720p 23.98/24/25/29.97/30/48/50/59.94/60
