Tieline Gateway Nexus, 32 Channel High Density IP Audio Codec

Tieline Gateway Nexus, 32 Channel High Density IP Audio Codec

Coming Soon, Pricing to be Announced

Write a Review
SKU:
TIE-GATEWAYNEXUS
Availability:
Ships from Manufacturer, Contact us for Pricing and Availability
Adding to cart… The item has been added

Overview

Tieline Gateway Nexus, 32 Channel High Density IP Audio Codec

The Gateway Nexus is a powerful and flexible 32-channel, high-density AoIP codec delivering deterministic, low-latency multichannel audio transport using dedicated and reliable hardware. The Nexus speaks the language of AES67, ST 2110-30, ST 2022-7, RAVENNA, Livewire+, NMOS, Ember+, AES3 and analog I/O as standard.

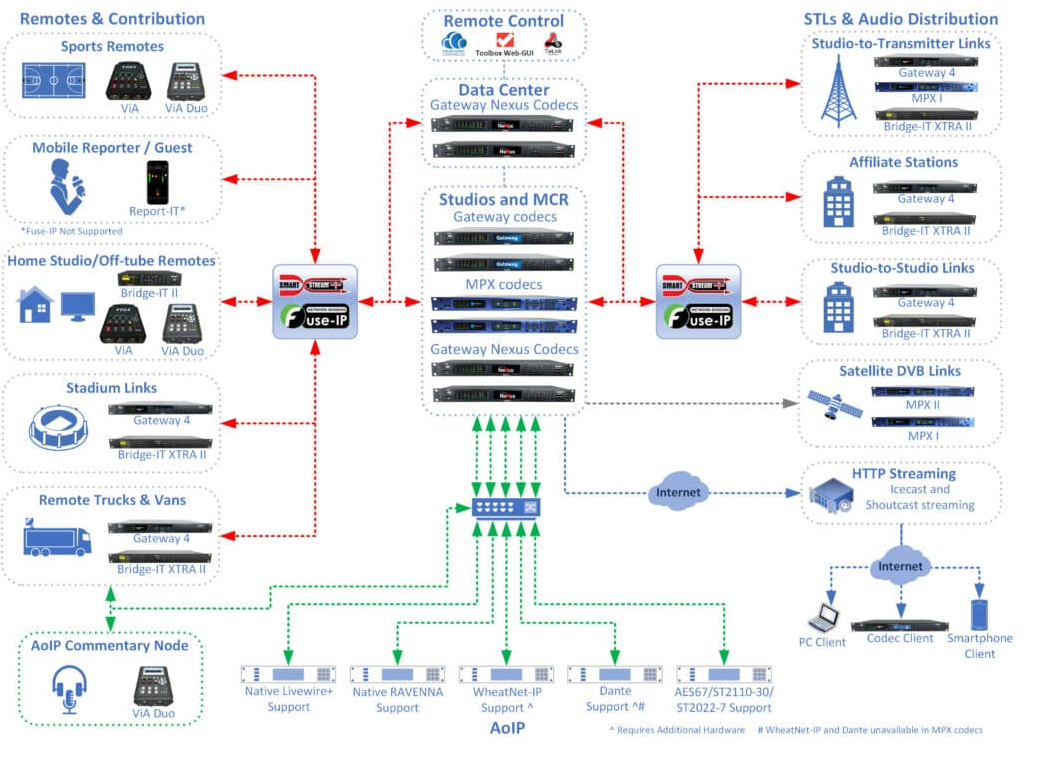

The Gateway Nexus is ideal for a wide range of deployments and stands out as a compact, powerful and cost-effective alternative to virtualized codec and server-based systems. It can be installed at the broadcast plant, or in hosted data center environments. It is engineered to natively support AES67, ST2110-30, ST2022-7, RAVENNA, Livewire+, NMOS IS-04, IS-05, IS-07 and Ember+. Additionally, a Dante card can be installed at purchase. Compliance with these standards ensures seamless integration into IP-based audio with vendors supporting these protocols.

Features

  • Analog, AES3: Support for AES67, plus AES3 (AES/EBU) and analog I/O options.
  • HTTP Streaming: Support for Icecast or Shoutcast HTTP streaming
  • SIP and IP Intercoms: SIP EBU Tech 3326, 3368, and EBU Tech 3347
  • Dual AoIP Ports: Stream AoIP from dual ports
  • SD card: SD card slot for firmware upgrades, storage and SDIO
  • Alarms: Silence Detection, PSU Failure, Lost connection, Temperature, AES Input, AES Reference, SNMP and more
  • Dual Internal Power Supplies: Dual power supplies provide backup if one fails
  • Dual Ethernet Ports: Connect using different Telcos for diversity using SmartStream PLUS redundant streaming
  • Multi-Unicast: Support for multiple simultaneous multi-unicasts over compatible IP networks to up to 80 endpoints
  • Simultaneous Multicast: Support for multiple simultaneous multicasts over compatible IP networks to unlimited endpoints
  • Phase-locked streaming mode: Stream 4, 6 and 8 digital channels in phase-locked mode to deliver live content in both stereo and surround sound formats (LC-AAC only)
  • Internal SSD Storage: Internal Storage supports record, store and forward use cases for network syndication applications*
  • Expanded Backup Options: Multiple levels of power, audio and network redundancy. The codec features dual Gigabit Ethernet ports, dual internal power supplies, automated audio silence detection and IP network backup solutions to ensure you’re always on the air.

* Denotes future release



Specifications / Documents



Input and Outputs

  • RJ45 Analog Inputs 1-4/AES3 Inputs 1-4: Shared analog stereo line inputs 1-4, or stereo AES3 digital inputs 1-4
  • RJ45 Analog Outputs 1-4/AES3 Outputs 1-4: Shared analog stereo line outputs 1-4, or stereo AES3 digital outputs 1-4
  • RJ45 AES3 Inputs 5-8: Stereo AES3 digital inputs 5-8
  • RJ45 AES3 Outputs 5-8: Stereo AES3 digital outputs 5-8
  • Gigabit LAN Ports: 2 x Gbit Ethernet ports for IP streaming over WANs (32 bidirectional mono or 16 bidirectional stereo)
  • Gigabit AoIP Streaming Ports: 2 x Gbit Ethernet ports for AES67/ ST 2110-30/ ST 2022-7; Optional Dante streaming via AoIP1
  • Front Panel USB 2.0 Host Port: Supports USB to LAN or USB Wi-Fi for control only
  • Rear Panel USB 3.0 Host Port: Supports USB to LAN for Control only
  • Front Panel Headphone Output: 1 x 6.35mm (1/4”) headphone Jack
  • Front Panel SD Card Slot: Full size push-pull SD card slot for firmware upgrades
  • BNC Sync Input/Output: 2 configurable input/output BNC sync connectors (Wordclock, AES3 Input, AES11id, PTP Sample Clock, and Fixed)
  • Control Port In/Out: Dual DB-25 Control Ports support 16 CMOS control inputs and 16 opto-isolated solid-state relay outputs
  • Analog Input Impedance: > 10k ohm
  • Analog Output Impedance: < 30 ohm balanced
  • Clipping Level: Nominal output level +4dBu with maximum output + 24 dBu
  • A/D & D/A Converters: 24 bit
  • AES3 (AES/EBU): 24 bit inputs with support for sample rates from 32kHz to 192 kHz[1]; 24 bit outputs
  • Frequency Response: 20Hz to 22kHz
  • Total Harmonic Distortion: <0.002% at +22dBu unweighted
  • Signal to Noise Ratio: >100dB at +24dBu, unweighted, 20Hz – 20kHz
  • Crosstalk: < -95dB between adjacent channels

Data and Control

  • Configuration and connectivity:HTML5 Toolbox Web-GUI, Cloud Codec Controller (CCC)
  • Serial (DB-9): RS232 up to 115kbps with or without CTS/RTS flow control can be used as a proprietary data channel
  • Software Logic I/Os (SLIO): 16 hardware GPIOs, plus 3 virtual inputs, 48 logical outputs, and 64 WheatNet or Livewire Logic Inputs/Outputs, 64 Ember + GPIOs

Encoding and IP Streaming

  • Encoding Formats: Tieline Music, Tieline MusicPLUS, Opus, G.711, G.722 (SIP only), MPEG Layer 2, MPEG Layer-3 LC-AAC, MPEG audio technologies licensed by Fraunhofer IIS (http://www.iis.fraunhofer.de/audio)
  • Uncompressed IP: Linear PCM16/24 bit 32kHz, 48kHz
  • IP Sample Frequencies: 8kHz, 16kHz, 32kHz, 48kHz
  • Phase-locked Surround Sound Channels: Stream 4, 6 and 8 digital channels in phase-locked mode to deliver live content in both stereo and surround sound formats (LC-AAC only)
  • Asymmetric encoding: Supports asymmetric multi-format encoding
  • Protocols: RTP, DHCP, SNMP, DNS, HTTP, IGMP, IPv4/IPv6, RTCP, STUN, SSL Security Certificate, RIST, RTSP , RFC5109, RFC5888, RFC4756, RFC3388, RFC2733, RFC3190
  • SmartStream PLUS: Primary plus a redundant stream supported for each connection
  • Multi-unicasting: Support for Multi-unicast and 1, 2, 3, 4, 6, 8 , 16 or 32 Multiple multi-unicast streams (80 connections in total)
  • Multicasting: Support for Multicast (8-16) streams over compatible IP networks
  • Fuse-IP: Bond IP interfaces to aggregate data

AoIP Standards & Specifications

  • EBU N/ACIP 3326: Audio Contribution Over IP Compliant
  • I3P EBU Tech 3347: Intercom Over IP Compliant
  • EBU N/ACIP 3368: SIP Profiles Compliant
  • AES67 Compliant: 44.1.kHz, 48kHz, 96kHz Sample rates; 16 & 24 Bit, 1-8 Channels, SDP, SAP
  • ST 2110-30 Compliant: Class A, Ax, B, Bx Sender and Receiver Compliant
  • ST 2022-7 Seamless Protection Switching: Compliant with requirements for sending multiple redundant streams of RTP packets to enable seamless protection switching
  • RAVENNA Compliant: RAVENNA Stream Discovery and Advertisement
  • Livewire+ Compliant: Livewire+ Stream Discovery and Advertisement
  • NMOS Compliant: NMOS IS-04 & IS-05 Discovery, Registration and Connection Management, NMOS IS-07 Event Notifications
  • Ember+: Supports Ember+ control protocol
  • Dante (Optional): Install an optional Dante card at purchase for Dante AoIP streaming support.
  • Supported Audio Frames: 125us, 250us, 333μs, 1ms, 4ms
  • Clock Modes Supported: Primary Leader (Master), Follower (Slave), Follower Only (Slave Only)

Advanced Networking

  • VLAN Tagging: IEEE 802.1Q,802.1p
  • Quality of Service (QoS): Support for DiffServ (DSCP)
  • Synchronization: IEEE 1588-2008(PTPv2)
  • Multicasting: IGMP v2 and v3 and IGMP v3 SSM
  • SAP: SAP v2 (Session Announcement Protocol) as defined in RFC 2974

General

  • Display: 24-bit Color LCD Screen (480 x 128 pixels)
  • Keypad: 26 button silicon keypad
  • Navigation: 5 navigation and selection buttons
  • Size: 1U x 19” Rackmount
  • Dimensions: 19” x 1 3/4” x 11 13/16” [482mm (W) x 44.45mm (H) x 300mm (D)] excluding rear connectors
  • Weight: 4 Kg /8 lb 13.100 oz
  • AC Power: Dual AC 90-240V IEC power inlets; 2A 50-60 Hz
  • Nominal Power: 30W
  • Maximum Power: 45W
  • Inrush Current (cold start): 60A 230 VAC (per PSU) ; 30A/115VAC (per PSU)
  • Operating Temperature: Operating Temperature
