West Penn Wire 291RD1000, Shielded Audio & Control Cable, 1pr, 22AWG, Red-1000' Reel in Box

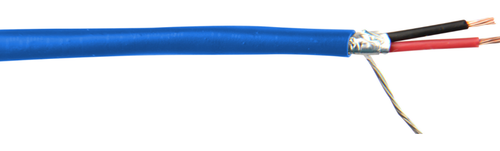

West Penn Wire 291 is an all-purpose communication cable with a blue PVC jacket. This 291-series cable has 22/2 stranded bare copper conductors and is shielded with an overall jacket. The 291 is ideal for a variety of applications, including: Intercom, Security, Sound, Audio, Background Music, and Power Limited Control Circuits.
Specifications / Documents
- Number of Conductors: 2
- AWG Size: 22
- Conductor Stranding: 7x30
- Conductor Type: Bare copper
- Nominal DCR: 17 Ohm/1000ft
- Cabling Lay Length: 2.5 in
- Twists/Foot: 4.8 twist/ft
- Insulation Type: Thermoplastic
- Insulation Thickness: 0.007 in
- Insulation Color Code: 1. Black 2.Red
- Shield Type: Overall 100% Aluminum Foil
- Drain Wire Type: Tinned Copper
- Drain Wire AWG: 24 AWG
- Nom. Cap. Between Conductors: 34 pF/ft
- Nom. Cap. Conductor to Shield: 67 pF/ft
- Jacket Type: PVC
- Jacket Thickness: 0.017 in
- Nominal Cable O.D.: 0.127 in
- Plenum: No
- NEC UL Rating: CMR, CMG:
- RoHS Compliant: Yes
- Pull Tension: 24 lbs:
- Bend Radius: 1.143 in
