Overview
Audemat RDS Encoder LT
Audemat RDS Encoder LT meets the growing demand of broadcasters and stations for advanced yet more affordable RDS encoding. It is a concentrate of RDS features to fulfill every broadcaster’s needs.
Trusted by major broadcasters and community stations alike, the Audemat RDS Encoder range, brought to market as the worthy successor of the famous FMB80, offers high signal quality and spectral purity.
Features
The Audemat RDS Encoder LT comes fully packed with all features required for an RDS encoder. All RDS Groups, features and communications are supported for the best RDS experience.
- Identify the station
- Automatically retune between transmitters of the same program
- Display song titles and artist information on receivers
- Traffic announcements
- Interactive radio (RT+)
- Future applications (ODA application)
- Traffic Message Channel
- Emergency Warning System

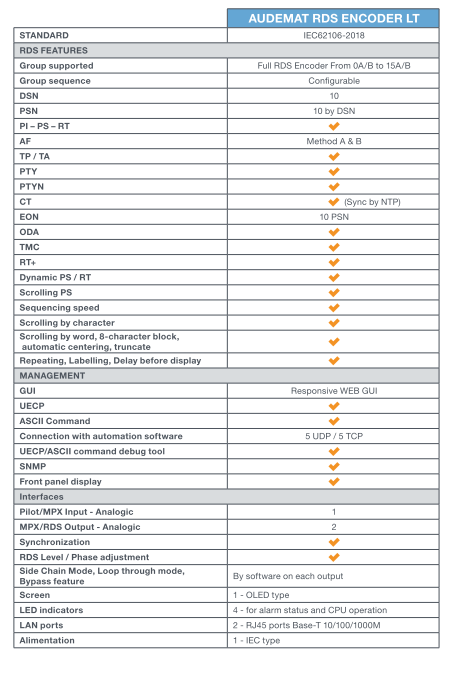

Specifications / Documents
- RDS FEATURES
- Group supported: Full RDS Encoder From 0A/B to 15A/B
- Group sequence: Configurable
- DSN: 10
- PSN: 10 by DSN
- PI – PS – RT: Yes
- AF Method: A & B
- TP / TA: Yes
- PTY: Yes
- PTYN: Yes
- CT: Yes (Sync by NTP)
- EON: 10 PSN
- ODA: Yes
- TMC: Yes
- RT+: Yes
- Dynamic PS / RT: Yes
- Scrolling PS: Yes
- Sequencing speed: Yes
- Scrolling by character: Yes
- Scrolling by word, 8-character block, automatic centering, truncate: Yes
- Repeating, Labelling, Delay before display: Yes
- MANAGEMENT
- GUI: Responsive WEB GUI
- UECP: Yes
- ASCII Command: Yes
- Connection with automation software: 5 UDP / 5 TCP
- UECP/ASCII command debug tool: Yes
- SNMP: Yes
- Front panel display: Yes
- Interfaces
- Pilot/MPX Input - Analogic: 1
- MPX/RDS Output - Analogic: 2
- Synchronization: Yes
- RDS Level / Phase adjustment: Yes
- Side Chain Mode, Loop through mode, Bypass feature: By software on each output
- Screen: 1 - OLED type
- LED indicators: 4 - for alarm status and CPU operation
- LAN ports: 2 - RJ45 ports Base-T 10/100/1000M
- Alimentation: 1 - IEC type
- Main
- Dimensions (l x h x d): 483(19’’) x 42 (1U) x 180mm
- Weight: 2.35 kg
- Main power supply: 100-240VAC / 50-60 Hz
- Power consumption: 25 VA
