Overview

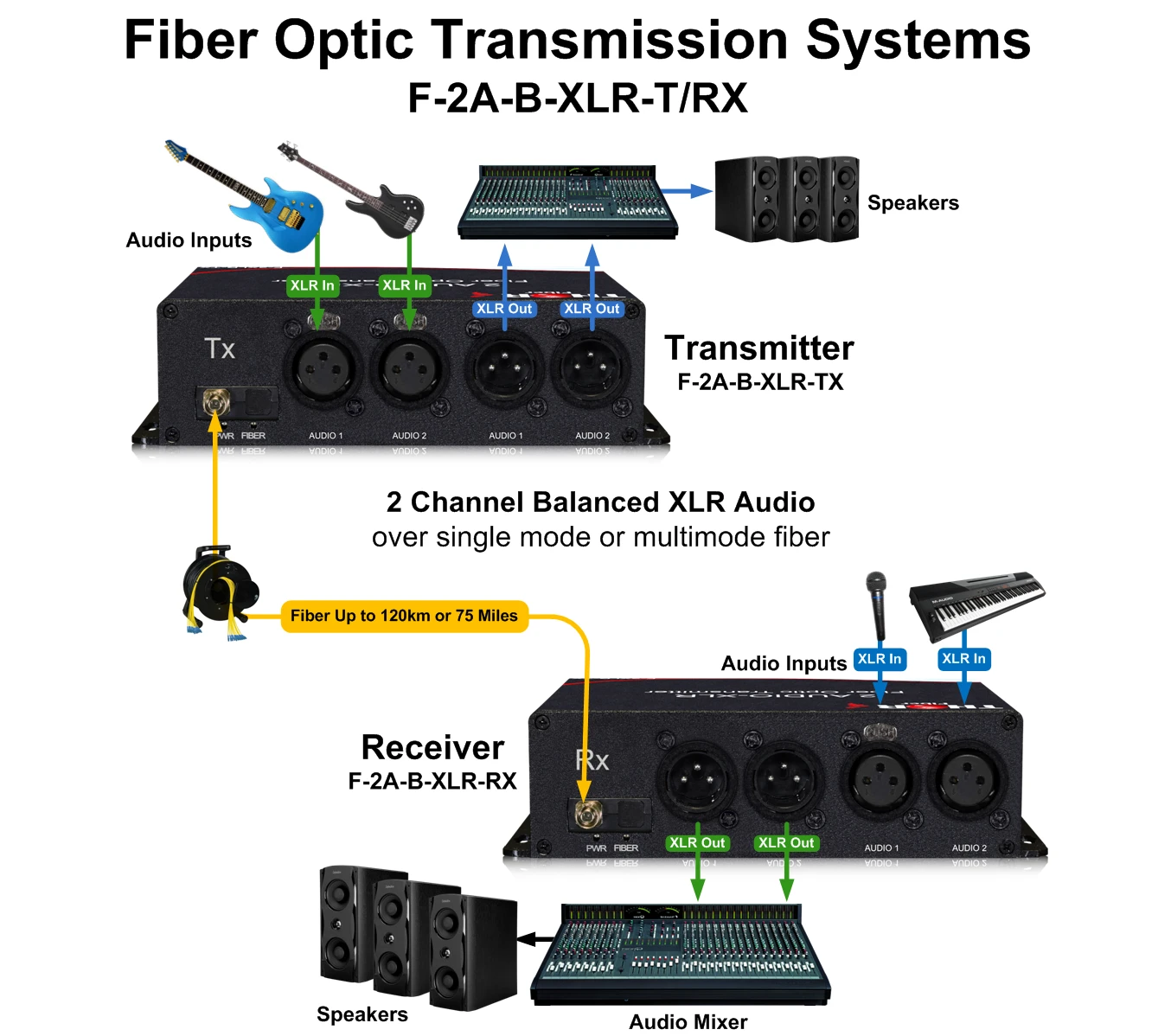

Thor Broadcast F-2A-XLR-B-TxRx, 2 Channel, Bi-Directional Audio Over Fiber System with XLR's
The Thor Fiber XLR Audio Over Fiber System is a professional solution for transmitting balanced XLR audio over fiber optic cable across long distances. This audio over fiber system is designed for broadcast, live events, and professional AV applications, delivering low-noise, interference-free analog audio over fiber beyond the limits of traditional copper cabling.
Each kit includes a matched XLR audio over fiber transmitter (TX) and receiver (RX), supporting 2, 4, 8, 16, or 32 channels of balanced audio over fiber on a single optical link. Using 16-bit digitally encoded audio, the system ensures broadcast-quality audio over fiber transmission with perfect channel integrity and no EMI or RF interference.
The Thor fiber optic audio extender supports both single-mode and multi-mode fiber, enabling long-distance audio over fiber transmission up to 20 km on single-mode fiber and 3 km on multi-mode fiber.
Features
- 3-Pin Balanced XLR Audio input/output
- 2 channel Bi-Directional XLR Audio
- 12V DC Power input
- Single mode fiber up to 20km, Multimode fiber up to 3000 feet
- Easy to Use, Plug and Play Units
Specifications / Documents
Optical
- Wavelength 1310nm or 1310/1550 for bi-directional models
- Output Power -8dBm (+-2db)
- Optic fiber 50/125u multimode, 62.5/125u multimode, 9/125u single mode
- Rx sensitivity -25dBm
- Optical connector ST/PC
- Distance 20Km for singlemode and 0~2KM (MM), 40, 80 120Km - model specific
Balanced Audio
- Number of Channels 2
- Input Connector XLR (female)
- Output Connector XLR (male)
- Input / Output Impedance 600 Ohm
- Input capacitance LINE inputs 10 pF
- Max input/output voltage 4.0Vp-p (6db)
- Frequency Response 10 Hz - 20kHz @±3dB
- Sample Rates From: 48kHz
- SNR: > 80dB
- Dynamic bandwidth: 101dB
- Total harmonic distortion (THD): -90dB
Electrical & Mechanical
- Input Power Requirements: DC 5V@2A
- Power Adapter: AC 90V~240V
- Power Consumption: < 5W
- Stand-Alone Dimensions: 168mm × 154mm × 45mm ( L: 6 3/4" D 4 1/2" H: 1 3/4" for the mounting holes)
