Overview
Thor Broadcast F-M1SDI-3G-TX/RX, 1 Channel 3G-SDI over Fiber Extender - HD/SDI Video Transmission up to 1080p60

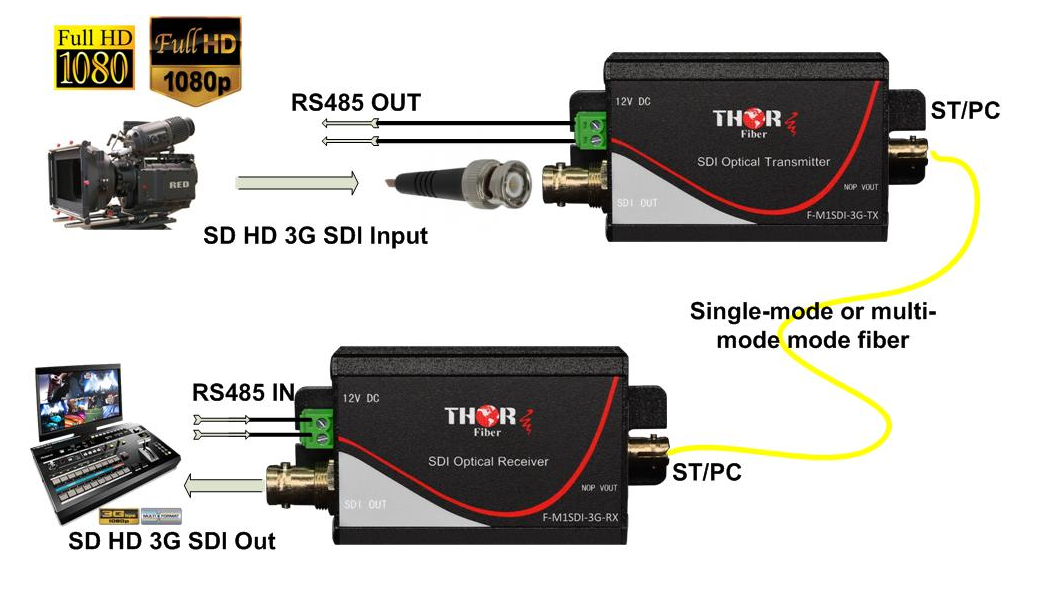

Thor Fiber ultra compact 3G SDI fiber extender kits are designed to increase the range of digital 3G, SD-SDI or HD-SDI video signals over singlemode fiber optic cable. SDI is normally carried over coax cable on BNC connectors, however the maximum cable distance is limited to around 100 meters. Thor SDI extenders increase the distance to more than 80 miles by using lasers to send data over the fiber cable.
Features
- Supports SMPTE-424m (3G-SDI), SMPTE-292M (HD-SDI), SMPTE-259M (SDL), DVB-ASI specifications
- Telecast Rattler Comparable
- Transports Multi-rate HD-SDI Digital Video Over Fiber 1 Single Mode Fiber
- Latch-Locking Power Connector
- HD-SDI BNC input connector
- Robust metal die-cast enclosure for harsher environments
- Automatic Input Equalization
Specifications / Documents
- HD-SDI Input:HD-SDI, SD-SDI or DVB-ASI
- 0 - 3 Gbps Serial Digital Signal
- Input Signal Standard: SMPTE292M, SMPTE259M, SMPTE297M, SMPTE310, SMPTE 424m,
- SMPTE 372m SMPTE305 (SDTI), DVB-ASI (EN50083-9), Medi Audio
- Number of Inputs
- 1 SDI - (BNC)
- 1 RS-485 (terminal block)
- Signal Level: > 800mVp-p
- Impedance: 75Ω
- Connector: BNC
- Distance: 20km Standard Model -- optical distance can be increased to 30/60/80/100km (additional costs will apply)
- Power Supply: 130 - 260 VAC @ 50-60 Hz
- Power Consumption: <10W
- Input Impedance: 75 Ohm
- Data Rate: up to 3 Gbps
- Signal Level: 800mVp-p +/- 50mV
- Optical Fiber Types: ST/PC (Single mode)
- Number of Fibers: 1
- Output Connector: BNC Female
- Propagation Delay (Sender): 1.3 ns
- Propagation Delay (Receiver): 35 ns
0 nm
Shipping Weight 1 lbs
