Thor Broadcast F-LBAND-Tx/Rx, L-BAND over Fiber Tx+Rx Basic 1 Ch Kit

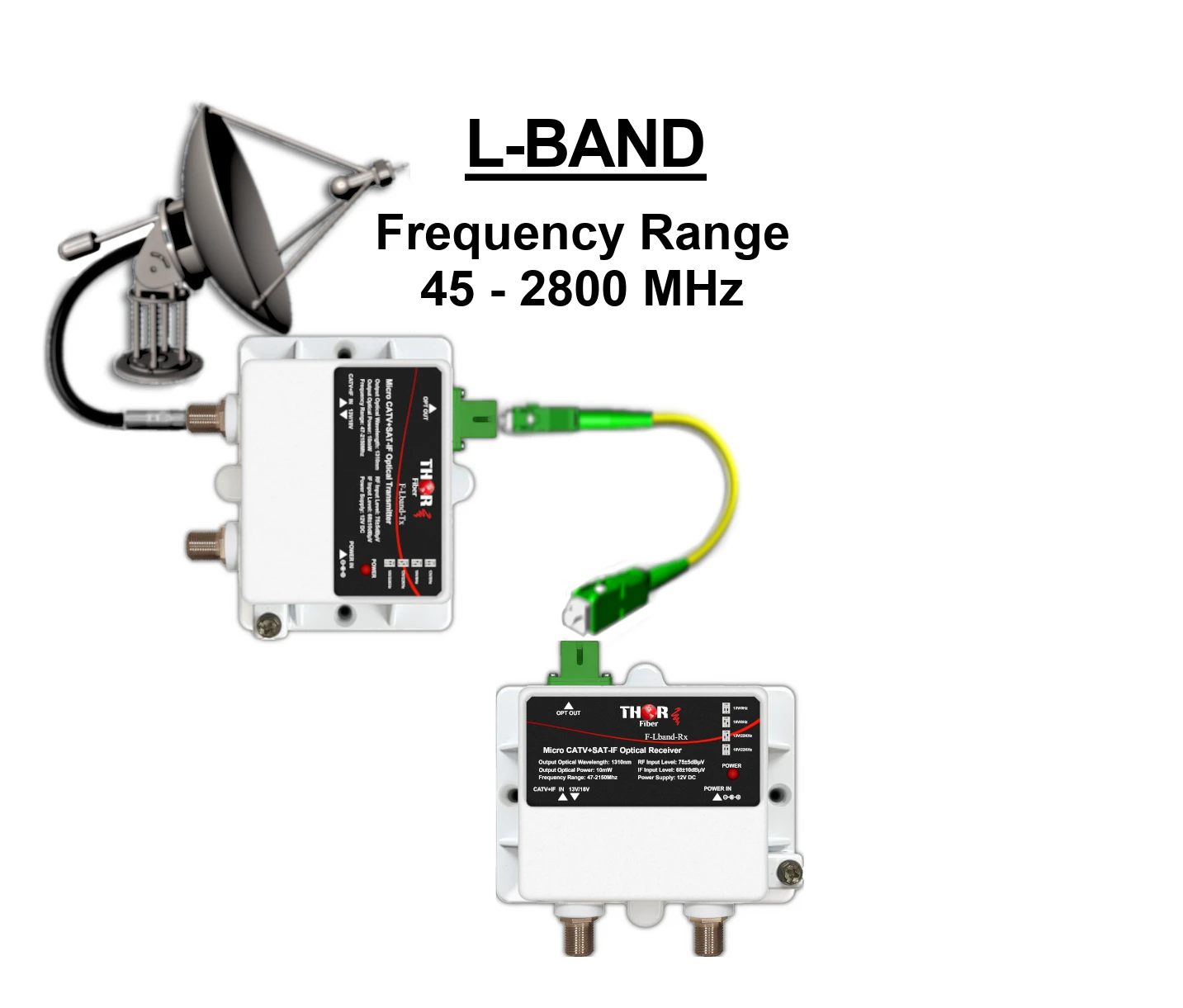

The L-Band fiber optic Transmitter/Receiver pair are used for transporting RF Satellite signals in the L Band over fiber from the antenna to the satellite receiver. L-band RF signals have a very limited range over coaxial cable, typically no more than a few hundred feet. By transporting the L-Band RF signal over an optical fiber this range can be extended to over 50 miles. Fiber optic cables are much smaller and easier to work with than traditional copper coax. Additionally our units provides optional 13/18V LNB power as well as Automatic Gain Control (AGC) to manage RF input level. Fiber optic transport of satellite signals is useful in many applications, such as transportation of signals from a remote satellite farm to a broadcaster's headend, uplink and downlink applications, and DBS services. This fiber satellite (SAT) extender can even transport broadband CATV RF over fiber optic cable.
Features
- Low cost kit to transport L-Band frequencies from LNB's over fiber
- Can provide LNB power at 13/18 VDC over coax
- Can provide 22 kHz control tone for LNB polarity shifting
- Can be used to remote satellite antennas up to 10 miles away
- Compatible with PLC optical splitters, point to multi-point
- DTH over fiber
- Great solution for VSAT network
- The transmitter receiver Kit comes with 110-220V AC to DC power supply
Specifications / Documents
Transmitter Properties
- Wavelength
- 1310 nm (standard)
- 1550 nm (optional) FP/DFB
- Output Power: +2.0 dBm +/- 2 dB
- Frequency Response Range: 45 - 2800 MHz
- RF Input Level: 55 - 78 dBµV
- LNB Power (optional): 13 or 18 VDC /650mA Max 22KHz
- RF Connector: F-Connector
- RF Return Loss: 13 dB
- RF Input Impedance: 75 Ohm
- CNR: 40 dB
- IMD: 40 dB
Receiver Properties
- Wavelength: 1290 - 1600 nm
- Optical input power range: -13 - 1 dBm (sensitivity -13 dBm)
- Frequency Range: 45 - 2800 MHz
General Parameters
- Power Supply Info: 12VDC, 1.5A AC to DC power supply - Incuded ( F-Type Female)
- Temperature Range: (-45) - 150 F
- RF Connectors: F - Connector
- Optical Connectors: SC/APC IMPORTANT NOTE*** (it is very important to interface our unit with SC/APC - Angle Polished Connector to avoid any light reflections. If your fiber is terminated with the SC, ST, FC /PC flat connector, you need to use an optical jumper from PC type to SC/APC for proper conversion.
- Dimensions: 118 mm x 210 mm x 40 mm
- Weight: 0.25 kg
