Overview
Dataprobe iPIO 8, Web Enabled I/O Controller, 8 1/O
The iPIO is a network attached, web enabled digital input and output device. The iPIO can be controlled and monitored with a standard web browser. Multiple iPIO devices can communicate amongst themselves to transport I/O information across the network. Each iPIO has controllable form C relays, and digital inputs. Each channel of the iPIO is independently configurable, allowing selection of what IP addresses to deliver to and on what channel. Highly flexible telemetry systems can be developed with these simple devices.
Features

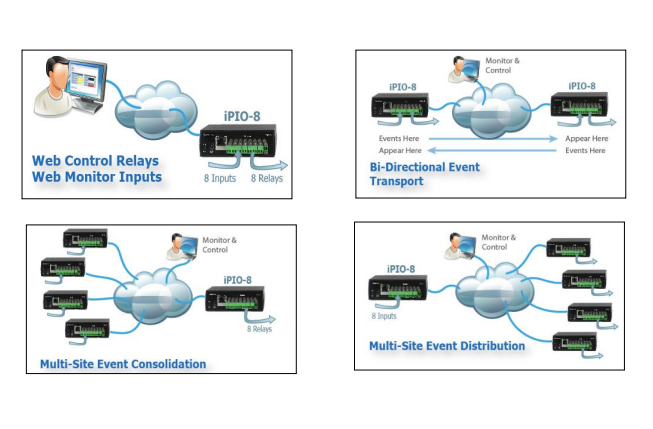

- Web Controlled Relays: One click relay control from clear web browser interface. Set name, qualifying time and color scheme for each relay.
- Real Time Status Monitoring: Continuous updates of input status. No need for browser refresh. Set name and color scheme for each relay
- GPIO Transportation Over the Network: Send contact closure information across the network to one or multiple places. Get the information you need, where you need it.
- Contact Closure via IP: Manage with SNMP or create your own custom programming to operate relays over the network.
- Link Supervision with Alarm: Continuously monitors data link between each device and alerts you when the network fails.
- Email Notification: Receive updates on all input and /or output activity.
- SNMP Management: SNMP V2c compliant MIB. Integrate into you network management scheme.
- Wet or Dry Input Monitoring: Configurable for +VDC inputs 3-30 volts.
- Multi-Site Distribution: Get status information from one point to multiple locations simultaneously. Ideal for load-shedding and security alert notifications.
- Alarm Consolidation: Summarize multiple alarm points to one location.
Specifications / Documents
- Power Input: 5 VDC (provided by included supply 105 - 240 VAC 50/60Hz )
- Inputs: 8 inputs - Two screw terminals per input. Dry Contact Closure or settable for +3VDC to +30 VDC input, Grounds Common
- Outputs: 8 outputs - Three screw terminals per output. Isolated Form C relay - NC-NO and Common.
- Networking: Web server for browser-based control, plus support for Telnet, SNMP, email alerts, and Dataprobe's inter-device (DxP) protocol
- Dimensions: Height 1.25" Width 5.00" Depth 7.50"
